OSI Model Layers are a fundamental concept for anyone pursuing the CCNA Course and aspiring to achieve success in the networking field. This framework explains how communication occurs between devices in a network, making it a key topic for CCNA candidates. With its seven distinct layers, the OSI model provides a structured approach to understanding, troubleshooting, and designing efficient networks.

Each layer plays a specific role in data transmission, from physical connections to application-level interactions. Understanding the OSI model gives CCNA learners with the knowledge to diagnose issues effectively and build reliable networking solutions in real-world scenarios.

What Is the OSI Model?

The OSI model is a conceptual framework created by the International Organization for Standardization (ISO) to standardize how data is sent and received across networks. It breaks down communication into seven layers, each responsible for specific tasks.

This layered approach simplifies networking by allowing engineers to isolate and address issues within a specific layer. It’s like troubleshooting a car: by focusing on individual components (engine, brakes, tires), you can identify problems without needing to examine the entire system.

The Seven Layers of the OSI Model

Each layer of the OSI model plays a distinct role in network communication. Here’s a detailed look at what each layer does:

1. Physical Layer (Layer 1)

• Purpose: Handles the physical connection between devices.
• Components: Cables, switches, hubs, connectors, and signals.
• Functions: Converts data into electrical signals, light pulses, or radio waves for transmission. Defines hardware specifications like voltage levels, cable types, and signal timing.
• Example: If your network cable is damaged or unplugged, the problem lies in the Physical Layer.

2. Data Link Layer (Layer 2)

• Purpose: Ensures reliable data transfer between two devices on the same network.
• Components: Network Interface Cards (NICs), switches, MAC addresses.
• Functions: Divides data into frames, handles error detection, and ensures data is sent without collisions. It has two sublayers:
  • Media Access Control (MAC): Manages device access to the network.
  • Logical Link Control (LLC): Ensures error-free communication.
• Example: A misconfigured switch or duplicate MAC address issue occurs at the Data Link Layer.

3. Network Layer (Layer 3)

• Purpose: Handles data routing between different networks.
• Components: Routers, IP addresses.
• Functions: Determines the best path for data to travel, manages logical addressing (IP addresses), and handles packet forwarding.
• Example: If there’s an IP conflict or routing problem, the issue is in the Network Layer.

4. Transport Layer (Layer 4)

• Purpose: Ensures reliable data transfer between devices.
• Components: TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).
• Functions: Divides data into segments, ensures data is delivered in the correct order, and manages error correction and retransmissions.
• Example: When a file transfer is interrupted but resumes where it left off, the Transport Layer is at work.

5. Session Layer (Layer 5)

• Purpose: Manages sessions or connections between devices.
• Functions: Establishes, maintains, and terminates communication sessions. Supports full-duplex and half-duplex communication.
• Example: When you log into a remote server, the Session Layer ensures your connection remains active.

6. Presentation Layer (Layer 6)

• Purpose: Translates data into a format that applications can understand.
• Functions: Handles data formatting, encryption, decryption, and compression.
• Example: When you open an encrypted email, the Presentation Layer decrypts the content for you.

7. Application Layer (Layer 7)

• Purpose: Provides network services directly to end users.
• Components: Web browsers, email clients, FTP (File Transfer Protocol).
• Functions: Interacts with software applications, enabling file transfers, email communication, and web browsing.
• Example: When you send an email, the Application Layer ensures the data is ready for transmission.

How the OSI Model Helps in Real Life

The OSI model isn’t just theoretical—it’s a practical tool for diagnosing and resolving network issues. By isolating problems to a specific layer, engineers can address issues more efficiently.

• Physical Layer Issues: Cable faults, hardware failures, or connectivity problems.
• Data Link Layer Issues: MAC address conflicts, frame errors, or switch misconfigurations.
• Network Layer Issues: IP conflicts, routing problems, or unreachable devices.
• Transport Layer Issues: Connection drops or data corruption.
• Session Layer Issues: Failed login sessions or unstable remote connections.
• Presentation Layer Issues: Corrupted file formats or encryption errors.
• Application Layer Issues: Non-responsive web applications or email server outages.

For example, if your computer can’t connect to the internet:

• Check the Physical Layer for unplugged cables.
• Test the Data Link Layer for switch or MAC address issues.
• Verify the Network Layer for IP configuration errors.

OSI Model Layers and Their Functions

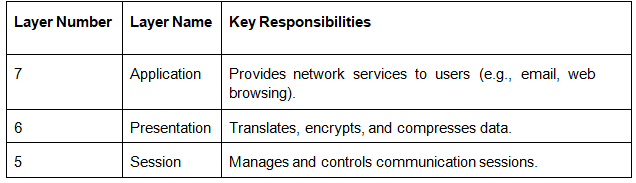

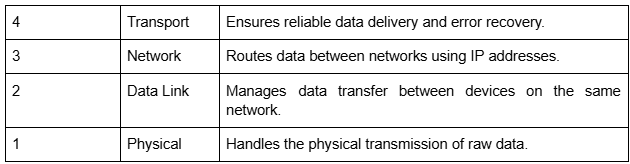

To summarize, here’s a table that highlights the seven OSI layers and their primary responsibilities:

Why the OSI Model Matters in the CCNA Curriculum

As a CCNA candidate, mastering the OSI model is crucial for several reasons:

• Understanding Protocols: Many networking protocols like TCP/IP, HTTP, and FTP align with OSI layers.
• Troubleshooting Skills: The OSI model helps you pinpoint where issues occur in a network.
• Network Design: It provides a clear structure for creating and managing networks.

Cisco’s CCNA certification emphasizes these concepts to ensure candidates are prepared to design, troubleshoot, and maintain networks in real-world scenarios.

Conclusion

The OSI model is more than a theoretical framework—it’s a practical guide for understanding and managing networks. For CCNA candidates, it’s the foundation of networking knowledge. By understanding each layer, you’ll gain the skills needed to identify and resolve issues efficiently, design robust networks, and communicate effectively with other networking professionals.

Whether you’re troubleshooting a home network or managing a large corporate system, the OSI model will always be your guide. As you prepare for your CCNA Certification, take the time to understand the OSI model in depth—it’s a stepping stone to a successful networking career.
